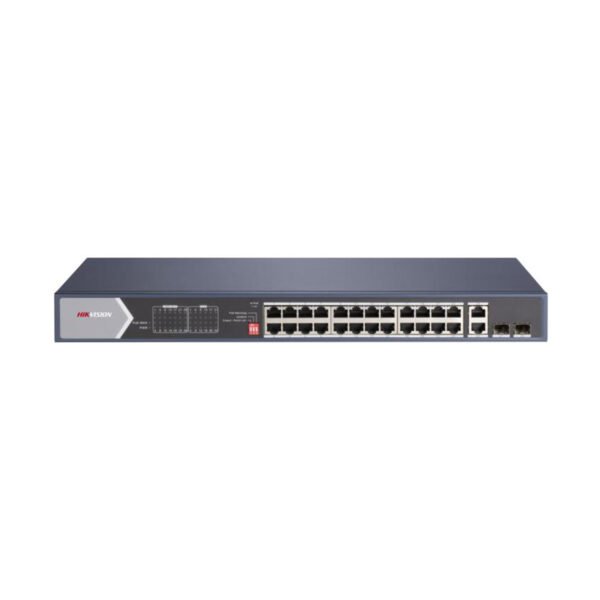

24 Port Gigabit Unmanaged POE Switch DS-3E0528HP-E
₨ 49,329.00
Equipped with 20 × Gigabit PoE ports, 4 × Gigabit Hi-PoE ports, 2 × Gigabit RJ45 ports, and 2 × Gigabit fiber optical ports
Hi-PoE ports support IEEE 802.3at/af/bt standards with a maximum PoE output of 90 W
PoE ports comply with IEEE 802.3at/af standards with a maximum PoE output of 30 W
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards
6 kV surge protection for PoE ports ensures reliable operation in harsh conditions
Supports long-range PoE transmission up to 300 meters
PoE watchdog automatically detects and restarts unresponsive cameras
Port isolation enhances network security and traffic management
Designed for seamless gigabit network access
Wire-speed forwarding ensures efficient data handling
Store-and-forward switching improves packet accuracy
Solid high-strength metal shell provides durability and protection
- Description
- Product Specifications
- Size Guide
- Additional information
- Reviews (0)
Description
This powerful PoE switch features 20 Gigabit PoE ports, 4 Gigabit Hi-PoE ports, 2 Gigabit RJ45 ports, and 2 Gigabit fiber optical ports, offering extensive connectivity for high-demand network environments. The Hi-PoE ports support IEEE 802.3at/af/bt standards with up to 90 W output, while the standard PoE ports comply with IEEE 802.3at/af, providing up to 30 W per port.
It adheres to key network standards including IEEE 802.3, 802.3u, 802.3x, 802.3ab, and 802.3z, ensuring wide compatibility and stable performance. Built-in 6 kV surge protection safeguards PoE ports against electrical surges, promoting reliable operation even in harsh conditions. With long-range PoE transmission support of up to 300 meters, it enables flexible device installation.
PoE watchdog functionality detects and restarts unresponsive cameras, while port isolation boosts security and traffic control. Designed for seamless gigabit access, the switch supports wire-speed forwarding for efficient data processing and utilizes store-and-forward switching for precise packet handling. A solid high-strength metal shell ensures lasting durability and protection.
| Power Supply | 100~240 VAC, 50/60 Hz, Max. 6.5 A |
| Shell | Metal material |
| Net Weight | 2.98 kg (6.57 lb) |
| Dimensions (W × H × D) | 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'') |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Max. Power Consumption | 400 W |
| Power Consumption in Idle | 30 W |
| Installation Mode | Rack (equipped with mounting ears) |
| Surge Protection | 6 KV |
| Ports | 24 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port |
| MAC Address Table | 8 K |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.664 Mpps |
| Internal Cache | 4.1Mbits |
| PoE Port | Hi-PoE: Ports 1 to 4 PoE: Ports 1 to24 |
| Max. Port Power | Ports 1 to 4: 90 W Ports 5 to 24: 30 W |
| PoE Power Budget | 370 W |
| PoE Standard | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| Long Range | Ports 21 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU) |
| Port Isolation | Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| POE Watchdog | Ports 1 to 24: auto detect and restart the cameras that do not respond. |
