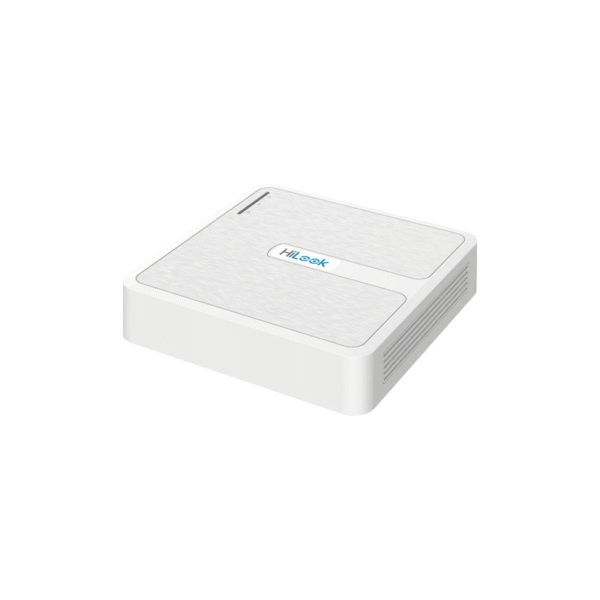

NVR-108H-D/8P 8-ch Mini 1U 8 PoE NVR
₨ 7,480.00
Supports H.265+, H.265, H.264+, and H.264 video formats.
Handles up to 60 Mbps for both incoming and outgoing data.
Connects with up to 8 network cameras.
Can decode up to 4 channels in full HD (1080p).
Outputs video through HDMI and VGA at the same time.
- Description
- Product Specifications
- Size Guide
- Additional information
- Reviews (0)
Description
This video recording and surveillance system is equipped with highly efficient video compression technologies, supporting H.265+, H.265, H.264+, and H.264 formats, which significantly reduce the file size without compromising video quality, making storage more efficient and streaming smoother. It is designed to manage high data traffic with a robust capacity of up to 60 Mbps for both incoming and outgoing bandwidth, ensuring stable performance even when multiple high-resolution cameras are transmitting simultaneously. The system can accommodate up to eight network camera inputs at once, allowing for comprehensive coverage and flexible integration into various surveillance environments, whether it’s for home security, office monitoring, or larger institutional setups. Moreover, it boasts a powerful decoding capability, handling up to four channels of 1080p resolution playback, delivering sharp, detailed footage that enhances the clarity of real-time viewing and recorded video analysis. To support diverse display needs, the device features both HDMI and VGA outputs that can function simultaneously, offering the convenience of connecting to different types of monitors or enabling dual-display setups for better visual management and control of the surveillance feed, ultimately making the system highly adaptable and reliable for modern security demands.
| Power | 48 VDC, 1.8 A |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
| Communication | ≤ 10 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 285 × 210 × 48 mm(11.2" × 8.3" × 1.9") |
| IP Video Input |
8-ch Up to 6 MP resolution |
| HDMI Output | 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Incoming Bandwidth | 60 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Remote Connection | 16 |
| Network Protocol | TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™ |
| Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
| Capacity | Up to 6 TB capacity for each disk |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Alarm In/Out | N/A |
| SATA | 1 SATA interface |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Recording Resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous-playback | 4-ch |
| Decoding Capability | 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps) |
| Stream Types | Video, Video & Audio |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power Type | ≤ 75 W |
| POE-Standard | IEEE 802.3 af/at |
| CE | EN50130-4, EN 61000-3-2,EN 61000-3-3 |
Additional information
| Brand | HiLook |
|---|
