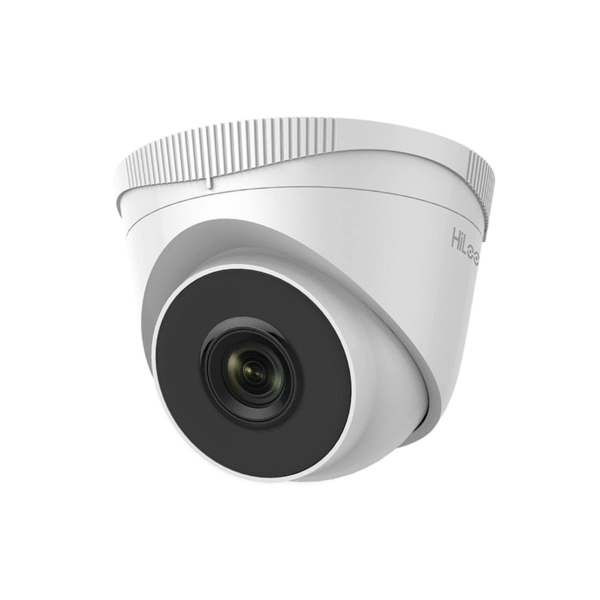

IPC-T220HA-LUC 2 MP Fixed Turret Network Camera
₨ 4,375.00
Delivers sharp 2MP full HD video quality for clear surveillance
Detects human movement intelligently for more accurate alerts
Advanced Smart Hybrid Light provides strong, adaptable night vision
Built-in microphone enables real-time audio monitoring
IP67-rated weatherproof design ensures durability in tough conditions
- Description
- Product Specifications
- Size Guide
- Additional information
- Reviews (0)
Description
Upgrade your security system with this advanced 2MP surveillance camera, designed to deliver clear and detailed full HD video for accurate monitoring day and night. With intelligent human detection technology, it minimizes false alarms by focusing only on relevant movements, providing peace of mind and efficient security management. The Smart Hybrid Light technology ensures adaptable night vision, automatically adjusting between infrared and visible light modes for optimal clarity in low-light conditions. Built-in audio capability through a high-sensitivity microphone allows for real-time sound monitoring, adding an extra layer of protection. Built to withstand harsh environments, the IP67-rated housing protects the camera against dust, rain, and extreme temperatures. Plus, installation is simplified with Power over Ethernet (PoE), combining power and data in a single cable for a clean and hassle-free setup—making this camera an excellent choice for both home and business use.
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 1920 X 1080 |
| Min. Illumination | Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Focal Length & FOV |
2.8 mm, horizontal FOV 94°, vertical FOV 51°, diagonal FOV 112°
4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F2.2 |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | IR: up to 20 m White Light: up to 15 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream |
50 Hz:
25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz:
25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS |
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI, SDK |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200 |
| Web Browser |
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image Settings |
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client
software or web browser |
| Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Basic Event | Motion detection (support alarm triggering by specified target type (human)), exception |
| Linkage | Notify surveillance center |
| Power |
12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity
protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Dimension | Ø 112 mm × 88.4 mm (Ø 4.4" × 3.5" |
| Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| Weight | Approx. 280 g (0.6 lb.) |
| With Package Weight | Approx. 450 g (1.0 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| EMC |
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 |
| Safety |
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
Additional information
| Brand | HiLook |
|---|---|
| Case Type | Turret |
| Lens Type | Fixed Lens |
| Resolution | 2 MP |
Reviews
There are no reviews yet.
