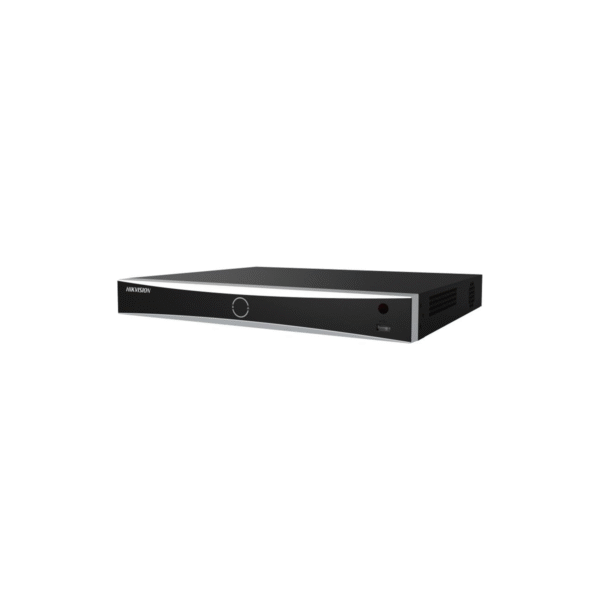

DS-7616NXI-I2/4S 16-ch 1U AcuSense 4K NVR

  • Supports connection of up to 16 IP cameras and works with third-party models.

  • Handles H.265+/H.265/H.264+/H.264 video formats for efficient compression and playback.

  • Delivers up to 12MP ultra HD live view, recording, and playback.

  • Can decode 12 channels at 1080p with up to 160 Mbps incoming bandwidth.

  • Offers HDMI and VGA outputs for separate displays, supports 2 hard drives, and includes AI-powered false alarm filtering on 4 channels for human and vehicle detection.

Availability: Available on backorder Brand:

Description

This advanced network video recorder is built to support up to 16 IP camera connections, making it an ideal solution for mid-sized surveillance systems in locations like schools, offices, warehouses, and retail environments. It offers full compatibility with third-party network cameras, allowing for flexible integration and system customization based on the user’s needs. The recorder supports a range of efficient video compression technologies, including H.265+, H.265, H.264+, and H.264, which are designed to reduce bandwidth consumption and storage requirements while maintaining high-definition video quality. With the ability to deliver live view, recording, and playback at resolutions of up to 12 megapixels, users can expect crystal-clear footage that captures even the smallest details for accurate monitoring and evidence collection. The system can decode up to 12 video streams at 1080p resolution simultaneously, and its generous 160 Mbps incoming bandwidth capacity ensures smooth data handling from multiple high-resolution cameras without performance issues. For display flexibility, it features both HDMI and VGA outputs, each supporting independent video output, which is especially useful for setups that require separate monitoring screens. To ensure reliable, long-term recording, the device accommodates two hard disk drives, providing ample storage space and continuous video saving capabilities. Additionally, this recorder incorporates intelligent video analytics powered by deep learning, offering false alarm reduction on four channels by accurately identifying human and vehicle movement. This helps to filter out unnecessary alerts caused by irrelevant motion such as animals, leaves, or shadows, allowing security personnel to focus on genuine events and enhancing overall surveillance efficiency. With its high camera capacity, smart detection features, advanced video support, and reliable performance, this NVR is a powerful tool for professional-grade security systems.

General
Weight ≤ 3 kg (6.6 lb)
Consumption ≤ 15 W
Power Supply 12 VDC,≤ 40 W
Dimensions (W × H × D) 380 × 315 × 51.5 mm ( 15.0"× 12.4" × 2.0")
Working Temperature ≤ 15 W
Working Humidity 10 to 90 %
Motion Detection 2.0
Human/Vehicle Analysis
False alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP.
Video and Audio
IP Video Input
16-ch
CVBS Input 1-ch, BNC (1.0 Vp-p, 75 Ω)
HDMI Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;HDMI,VGA
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Incoming Bandwidth 160 Mbps/256 Mbps
Network
Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
Capacity
Up to 8 TB capacity for each HDD
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 4/1
SATA 2 SATA interfaces for two 3.5-inch HDDs;2
Decoding
Decoding Format H.265/H.265+/H.264/H.264+/MPEG4;H.265+,H.265,H.264+,H.264
Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous-playback 16-ch
Decoding Capability 12 × 1080p
