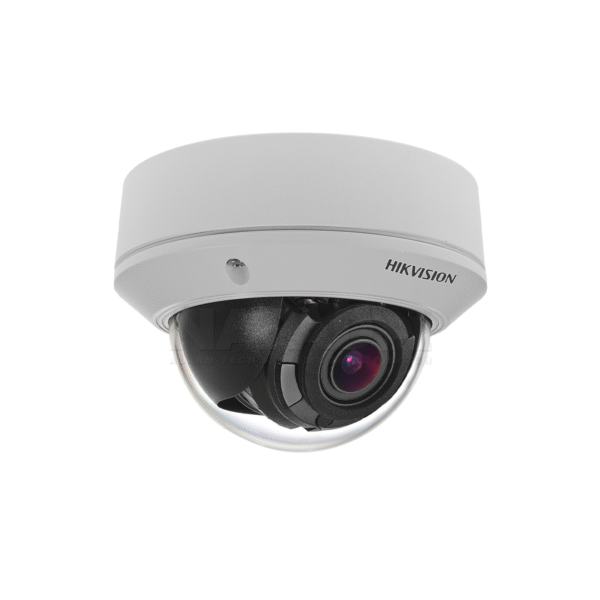

DS-2CD1743G0-I(Z) 4 MP Varifocal Dome Network Camera
₨ 18,500.00
Captures sharp and detailed 4MP video for enhanced image clarity and reliable surveillance.
Utilizes H.265+ compression to maximize storage efficiency and minimize bandwidth usage.
Maintains clear visuals in high-contrast or backlit environments with 120 dB Wide Dynamic Range.
Offers flexible local storage with support for up to 256 GB microSD card and a 2.8–12 mm motorized zoom lens for adjustable viewing angles.
Built tough with IP67-rated weather resistance and IK10-rated vandal protection, along with EXIR 2.0 infrared technology for superior night vision.
- Description
- Product Specifications
- Size Guide
- Additional information
- Reviews (0)
Description
This advanced surveillance camera is designed to deliver exceptional image quality with its 4MP high-resolution sensor, providing crisp, clear video that captures fine details essential for effective security monitoring. It features cutting-edge H.265+ compression technology, significantly reducing bandwidth consumption and storage needs while maintaining excellent video clarity, making it ideal for long-term recording and efficient data management. Even in challenging lighting situations, such as areas with intense glare or deep shadows, the camera excels with its 120 dB Wide Dynamic Range (WDR), which ensures that both bright and dark areas of the image are clearly visible. For convenient local storage, it supports a memory card slot that accommodates up to 256 GB, giving users flexibility in managing their recording needs without relying solely on external storage devices. The camera also comes equipped with a 2.8 to 12 mm motorized varifocal lens, allowing remote zoom and focus adjustments to achieve the perfect viewing angle without manual intervention—simplifying both installation and future adjustments. Built for tough environments, the device is IP67-rated for water and dust resistance and IK10-rated for protection against vandalism, ensuring reliable performance in outdoor and high-risk areas. Enhancing its night surveillance capabilities, the camera uses EXIR 2.0 infrared technology, which provides a powerful and uniform IR beam with an extended range, enabling clear and consistent night vision even in complete darkness.
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355° |
| Focal Length & FOV | 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 54° to 17°, diagonal FOV 123° to 35° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Lens Type | Varifocal Lens, motoried lens, 2.8 to 12 mm |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Main Stream |
50 Hz: 20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser |
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Image Enhancement | BLC, 3D DNR |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Alarm | -S: 1 input,1 output, max. 12 VDC, 30 mA |
| Basic Event | Motion detection, video tampering alarm, exception |
| Power |
12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W |
| Dimension | Ø141 mm × 99.9 mm (Ø5.6" × 3.9") |
| Package Dimension | 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1") |
| Weight | Approx. 820 g (1.8 lb.) |
| With Package Weight | Approx. 1200 g (2.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| EMC |
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety |
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | -S: 8 kHz/16 kHz |
| Audio Compression | -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
Additional information
| Brand | |
|---|---|
| Case Type | Dome |
| Lens Type | Motorized Varifocal Lens |
| Resolution | 4 MP |
