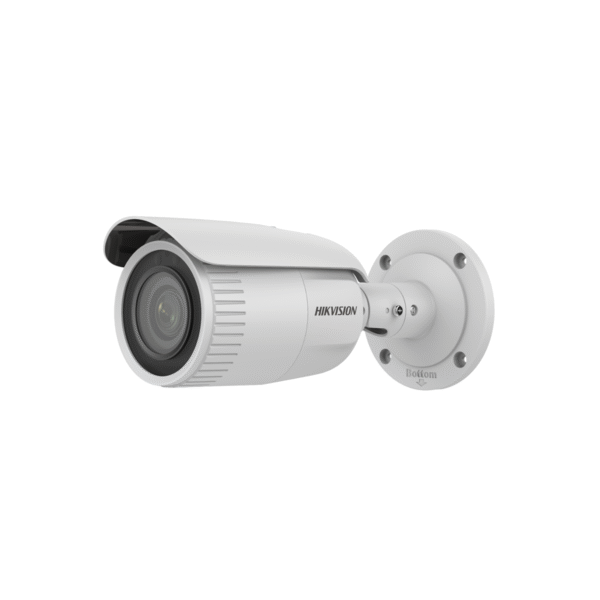

DS-2CD1643G0-I(Z) 4 MP Varifocal Bullet Network Camera
₨ 18,500.00
Produces sharp and detailed 4MP video quality for precise and effective surveillance.
Advanced H.265+ encoding reduces storage needs and conserves network bandwidth.
120 dB Wide Dynamic Range ensures clear footage even in areas with extreme lighting contrast.
Supports local recording with an SD card slot capable of holding up to 256 GB of footage.
Comes with a 2.8–12 mm motorized zoom lens for adjustable views, is IP67-rated for weather protection, and features EXIR 2.0 infrared for extended-range night vision.
- Description
- Product Specifications
- Size Guide
- Additional information
- Reviews (0)
Description
This advanced surveillance camera offers crystal-clear video capture with its 4MP high-resolution sensor, ensuring precise detail for accurate monitoring in both residential and commercial settings. It utilizes highly efficient H.265+ video compression technology, which helps to significantly reduce bandwidth usage and storage requirements without compromising image quality. Even in difficult lighting environments, the camera delivers balanced and clear footage thanks to its 120 dB Wide Dynamic Range (WDR), which enhances visibility in both dark and bright areas of a scene. For convenient local storage, it supports an SD card slot with a capacity of up to 256 GB, allowing for reliable on-site video saving. The integrated 2.8 to 12 mm motorized varifocal lens offers flexible viewing angles and easy remote zoom and focus adjustment, simplifying both installation and ongoing monitoring. Engineered for outdoor use, the camera features an IP67-rated housing to protect against dust and heavy rain, and it is equipped with EXIR 2.0 infrared technology that provides long-range and uniform night vision, ensuring consistent performance even in complete darkness.
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° |
| Focal Length & FOV | 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Lens Type | Varifocal lens, motor-driven lens, 2.8 to 12 mm |
| Supplement Light Range | Up to 50 m |
| IR Wavelength | 850 nm |
| Main Stream |
50 Hz: 20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser |
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, 3D DNR |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Ethernet Interface | Auto, Schedule, Day, Night |
| Alarm | -S: 1 input,1 output, max. 12 VDC, 30 mA |
| Basic Event | Motion detection, video tampering alarm, exception |
| Linkage | Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture |
| Power |
12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W |
| Dimension | Ø105 mm × 244.4 mm (Ø4.1" × 9.6") |
| Package Dimension | 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6") |
| Weight | Approx. 1035 g (2.3 lb.) |
| With Package Weight | Approx. 1550 g (3.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Material | Metal |
| EMC |
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety |
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | -S: 8 kHz/16 kHz |
| Audio Compression | -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
Additional information
| Brand | |
|---|---|
| Case Type | Bullet |
| Lens Type | Motorized Varifocal Lens |
| Resolution | 4 MP |
Reviews
There are no reviews yet.
