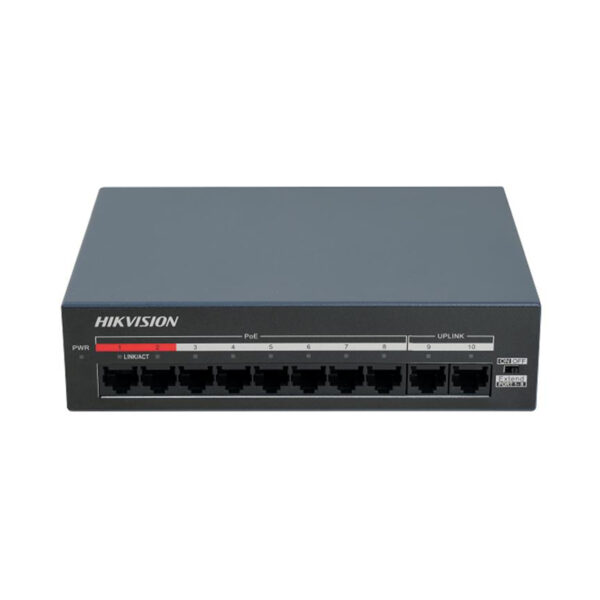

8 Port Fast Ethernet Unmanaged POE Switch DS-XS10-P
Equipped with 8 ports supporting 10/100 Mbps speeds (PoE RJ45) and 2 ports supporting 10/100 Mbps speeds (RJ45)
Delivers a total PoE power budget of 60 W for connected devices
Supports long-range data transmission for extended coverage
Includes high-priority ports for critical data traffic management
- Description
- Product Specifications
- Size Guide
- Additional information
- Reviews (0)
Description
This 10-Port Fast Ethernet PoE Switch is equipped with 8 ports supporting 10/100 Mbps PoE RJ45 connections and 2 additional 10/100 Mbps RJ45 ports for versatile network connectivity. With a total PoE power budget of 60 W, it delivers power to PoE-enabled devices like IP cameras, phones, and access points, eliminating the need for separate power sources.
Designed for long-range data transmission, this switch ensures extended coverage, making it suitable for larger networks or remote installations. It also includes high-priority ports, which prioritize critical data traffic, ensuring smooth and efficient network performance even under heavy loads.
Compact and feature-rich, this switch is perfect for businesses or offices seeking to expand their network with reliable PoE functionality while maintaining efficient traffic management. The combination of data and power over a single cable streamlines installation, offering a clean, organized solution for diverse networking needs.
| Material | Metal material |
| Power Supply | 220 VAC, 50Hz, 1.5A |
| Shell | Metal material |
| Net Weight | 0.56 kg (1.23 lb) |
| Gross Weight | 0.64 kg (1.41 lb) |
| Dimensions (W × H × D) | 175.0 mm × 44.0 mm × 124.0 mm (6.89'' × 1.73'' × 4.88'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Max. Power Consumption | 60 W |
| Power Consumption in Idle | 3.4 W |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Surge Protection | 2 KV |
| Ports | 8 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port |
| MAC Address Table | 2 K |
| Switching Capacity | 2 Gbps |
| Packet Forwarding Rate | 1.49 Mpps |
| Internal Cache | 0.77 Mbits |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
| PoE Standard | IEEE 802.3af;IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018) |
Additional information
| Brand | |
|---|---|
| Ports | 8 port |
| Material | Metal |
| Switch Type | Unmanaged |
