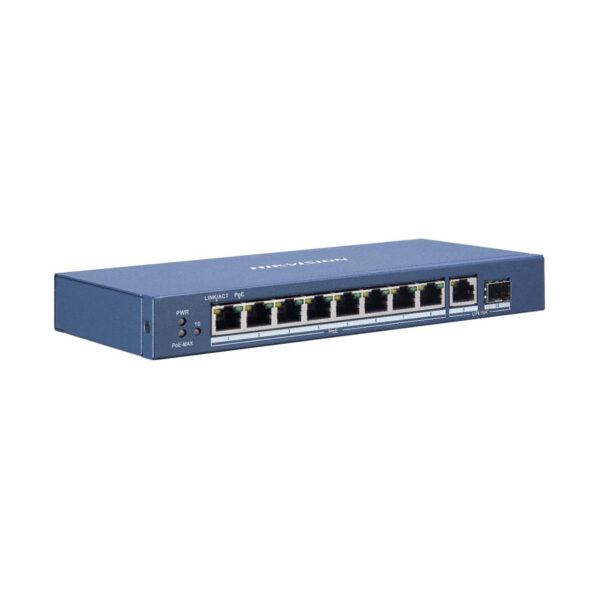

8 Port Fast Ethernet Unmanaged POE Switch DS-3E0310P-E/M
₨ 7,019.00
Equipped with 8 ports supporting 10/100 Mbps speeds (PoE RJ45) and 2 ports supporting Gigabit speeds (RJ45)
Compliant with IEEE 802.3at/af standards for PoE ports, with a maximum PoE output of 60 W
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, and IEEE 802.3ab standards
Provides 6 KV surge protection for PoE ports to enhance device safety
Enables long-range transmission up to 300 meters
Supports wire-speed forwarding for efficient data handling
Utilizes store-and-forward switching for reliable packet processing
Built with a solid high-strength metal shell for enhanced durability
Fan-free design ensures quiet operation and dependable performance
- Description
- Product Specifications
- Size Guide
- Additional information
- Reviews (0)
Description
This 10-Port PoE Switch is equipped with 8 PoE RJ45 ports supporting 10/100 Mbps speeds and 2 RJ45 ports supporting Gigabit speeds, offering a flexible and efficient networking solution. Compliant with IEEE 802.3at/af standards, the PoE ports provide a maximum output of 60 W, making it ideal for powering IP cameras, wireless access points, and other PoE-enabled devices.
It supports a wide range of standards, including IEEE 802.3, 802.3u, 802.3x, 802.3z, and 802.3ab, ensuring broad compatibility across network setups. The switch also features 6 KV surge protection on PoE ports to enhance safety and protect connected devices in harsh environments.
With support for long-range transmission up to 300 meters, it enables flexible deployment options. Wire-speed forwarding and store-and-forward switching ensure efficient and reliable data handling. Built with a solid high-strength metal shell, the fan-free design promotes quiet operation and long-term dependability. This switch is a robust, high-performance choice for expanding any PoE-enabled network.
| Power Supply | 48 VDC, 1.35 A |
| Shell | Metal material |
| Net Weight | 0.555 kg (1.22 lb) |
| Gross Weight | 1.20 kg (2.65 lb) |
| Dimensions (W × H × D) | 217.6 mm × 103.35 mm × 27.8 mm (8.57'' × 4.07'' × 1.09'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Max. Power Consumption | 65 W |
| Power Consumption in Idle | 5 W |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Surge Protection | 6 KV |
| Ports | 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port |
| MAC Address Table | 8 K |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Internal Cache | 4 Mbits |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
| PoE Standard | IEEE 802.3af;IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| Long Range | Ports 1 to 8 : up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
Additional information
| Brand | |
|---|---|
| Ports | 8 port |
| Switch Type | Unmanaged |
