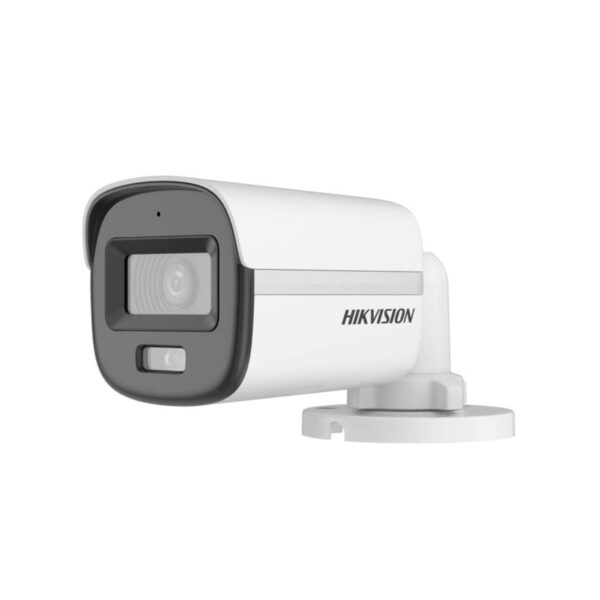

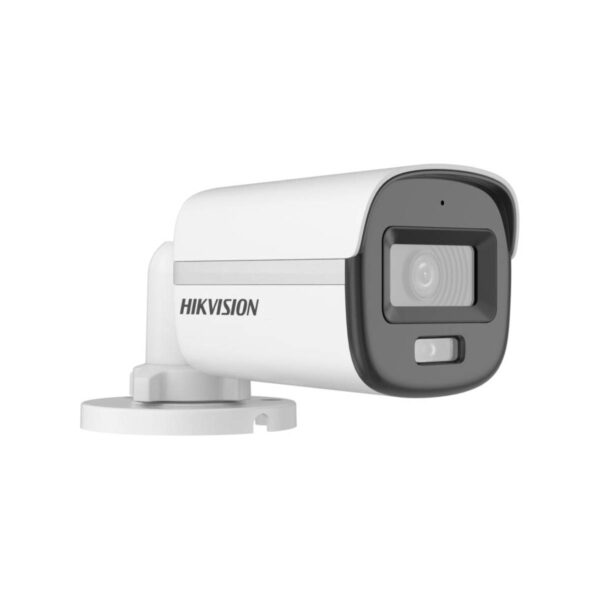

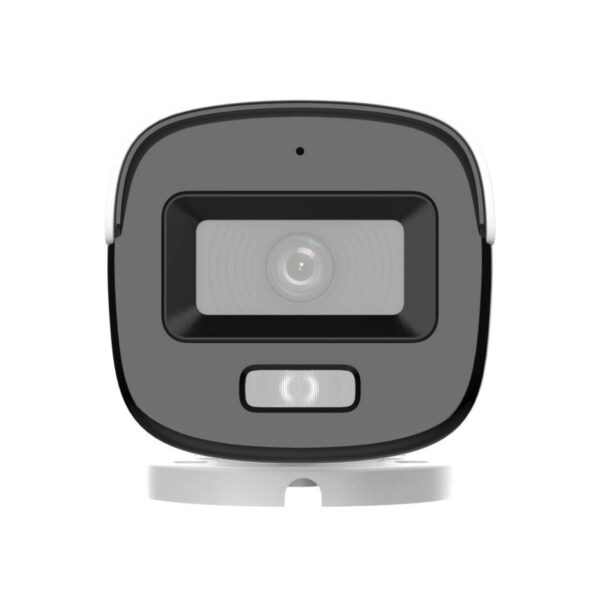

3K ColorVu Audio Fixed Mini Bullet Camera DS-2CE10KF0T-PFS
₨ 5,472.00
- 3K resolution (2960 × 1665) for sharp video quality
- Full-color imaging day and night with F1.0 aperture
- 2.8 mm & 3.6 mm fixed lens options for flexible viewing
- White light up to 20m for clear night visibility
- 4-in-1 video output (TVI/AHD/CVI/CVBS) via one port
- Weatherproof design with IP67 rating
- Built-in mic with audio over coax cable for easy setup
- Description
- Product Specifications
- Size Guide
- Additional information
- Reviews (0)
Description
This high-performance 3K security camera offers exceptional image clarity with a resolution of 2960 × 1665, ensuring precise detail capture for effective surveillance. Engineered with an F1.0 large aperture lens, it delivers full-color imaging around the clock, even in low-light conditions—making it ideal for environments that demand consistent visual accuracy both day and night.
Equipped with fixed focal length options of 2.8 mm and 3.6 mm, the camera provides flexibility in field of view to suit various monitoring needs. Its integrated white light illumination extends up to 20 meters, enabling bright, full-color video during nighttime operation without relying on traditional infrared imaging. This feature enhances visibility in dark areas while maintaining accurate color representation.
Designed for both versatility and reliability, the camera supports four switchable video signal formats (TVI, AHD, CVI, CVBS) via a single output, ensuring compatibility with a wide range of DVR systems. A built-in microphone allows for high-quality audio transmission over coaxial cable, simplifying installation and reducing setup costs. With an IP67-rated housing, the device is protected against dust and water, making it highly suitable for outdoor and harsh environment applications.
| Image Sensor | 3K CMOS |
| Max. Resolution | 2960 (H) × 1665 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Focal Length & FOV |
2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96° |
| Lens Mount | M12 |
| Lens Type | 2.8 mm and 3.6 mm fixed focal lens |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 20 m |
| Image Settings | Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light, AGC |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global, HLS |
| Frame Rate |
TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps
AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Day/Night Mode | Color |
| White Balance | Auto/Outdoor/Global/Manual |
| Noise Reduction | 2D DNR |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Alarm | Solid Light Alarm (White Light) |
| Built In Microphone | Built-in mic |
| Power |
12 VDC ± 25%, Max. 2.5 W,
*You are recommended to use one power adapter to supply the power for one camera. |
| Dimension | 161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76") |
| Weight | Approx. 238 g (0.52 lb.) |
| Language | English |
| Operating Condition | -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Material | Plastic |
| Communication | HIKVISION-C |
| Protection | IP67 |
Additional information
| Brand | |
|---|---|
| Case Type | Bullet |
| Lens Type | Fixed Lens |
| Resolution | 3K |
